HalluSegBenchCounterfactual Segmentation Reasoning for Pixel-Grounding Hallucinations

Xinzhuo Li^*, Adheesh Juvekar^*, Jiaxun Zhang^†, Xingyou Liu^†, Muntasir Wahed,

Kiet A. Nguyen, Yifan Shen, Tianjiao Yu, Ismini Lourentzou

PLAN Lab · University of Illinois Urbana-Champaign

CVPR 2026 (Findings)

* Equal Contribution † Equal Contribution

TL;DR

We introduce RobustSeg, a segmentation vision-language model trained on factual and counterfactual image pairs to ground masks in visual evidence and abstain when the queried object is absent. Our Counterfactual Segmentation Reasoning task and HalluSegBench benchmark test this distinction and measure the severity of hallucinated masks. Counterfactual fine-tuning reduces hallucinations by 30% while preserving segmentation fidelity.

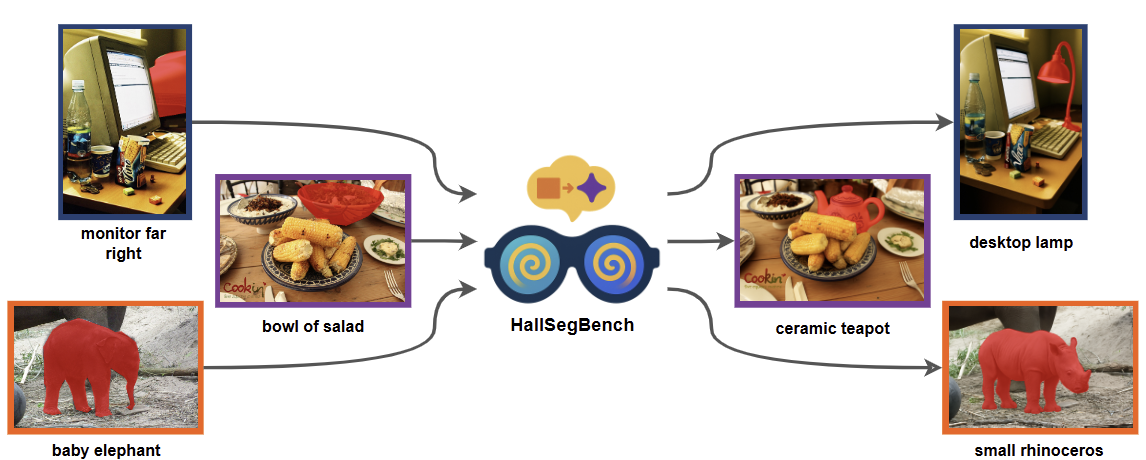

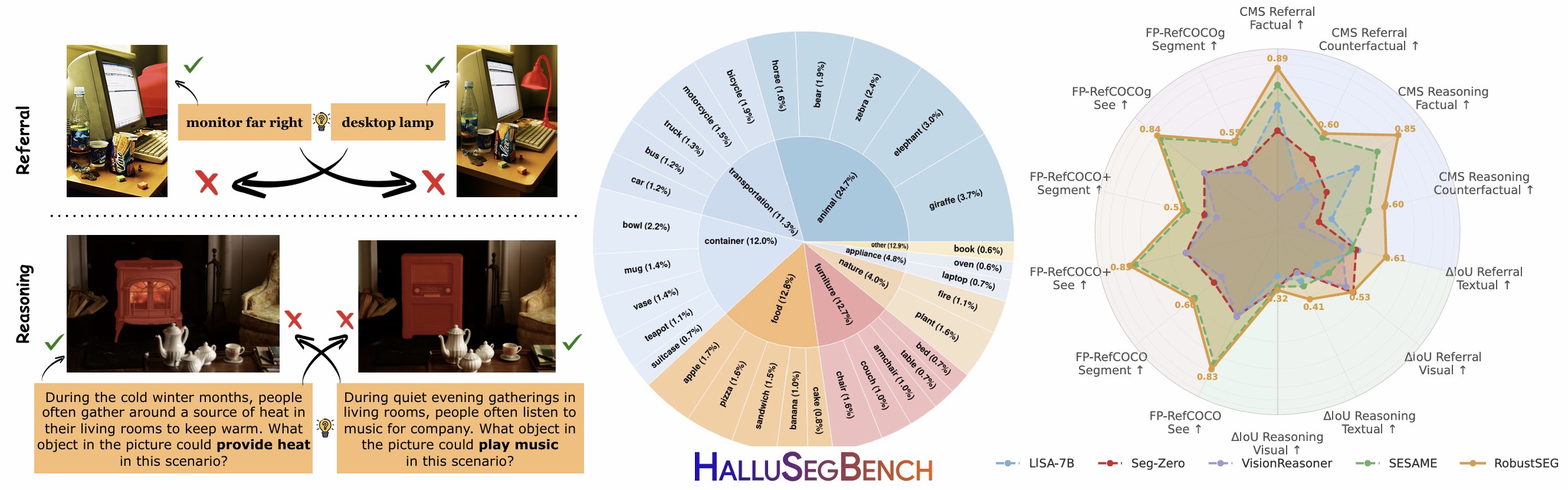

HalluSegBench paired examples, object distribution, and RobustSeg evaluation — Segmentation grounded in visual evidence

Paired factual and counterfactual examples test segmentation and abstention. The benchmark spans diverse objects and compares RobustSeg with existing segmentation models.

Abstract

Segmentation Vision-Language Models (VLMs) have significantly advanced grounded visual understanding, yet they remain prone to pixel-grounding hallucinations, producing masks for incorrect objects or for objects that are entirely absent. Existing evaluations rely almost entirely on text- or label-based perturbations, which check only whether the predicted mask matches the queried label. Such evaluations overlook the spatial footprint and severity of hallucination and therefore fail to reveal vision-driven hallucinations, which are more challenging and more prevalent. To address this gap, we formalize the task of Counterfactual Segmentation Reasoning (CSR) where a model must segment the referenced object in the factual image and abstain in its counterfactual counterpart. To support this task, we curate HalluSegBench the first large-scale benchmark to diagnose referring and reasoning expression segmentation hallucinations using controlled visual counterfactuals, alongside new evaluation metrics that measure hallucination severity and disentangle vision- and language-driven failure modes. We further introduce RobustSeg a segmentation VLM trained with counterfactual fine-tuning (CFT) to learn when to segment and when to abstain. Experimental results confirm RobustSeg reduces hallucinations by 30%, while improving segmentation performance on FP-RefCOCO(+/g).

Contributions

New Task. To assess segmentation fidelity, we introduce the novel task of Counterfactual Segmentation Reasoning (CSR) which assesses whether segmentation models correctly adapt to counterfactual visual changes. Our experiments show that vision-driven hallucinations are far more severe than label-driven ones, highlighting critical gaps in current grounding capabilities.
New Benchmark. We curate HalluSegBench the first benchmark for pixel-grounding hallucination via counterfactual visual reasoning, and propose novel evaluation metrics that quantify hallucination along complementary dimensions.
New Model. We present RobustSeg a segmentation VLM, trained with Counterfactual Finetuning (CFT), with abstention-aware grounding capabilities. RobustSeg learns to distinguish visual evidence from contextual priors, yielding large and consistent reductions in hallucination while preserving segmentation fidelity.

RobustSeg Method

RobustSeg learns when a requested object has visual support. Counterfactual fine-tuning uses both present-object examples, which require a mask, and absent-object examples, which require abstention. Frozen vision and language encoders feed a trainable segmentation decoder and language adapters.

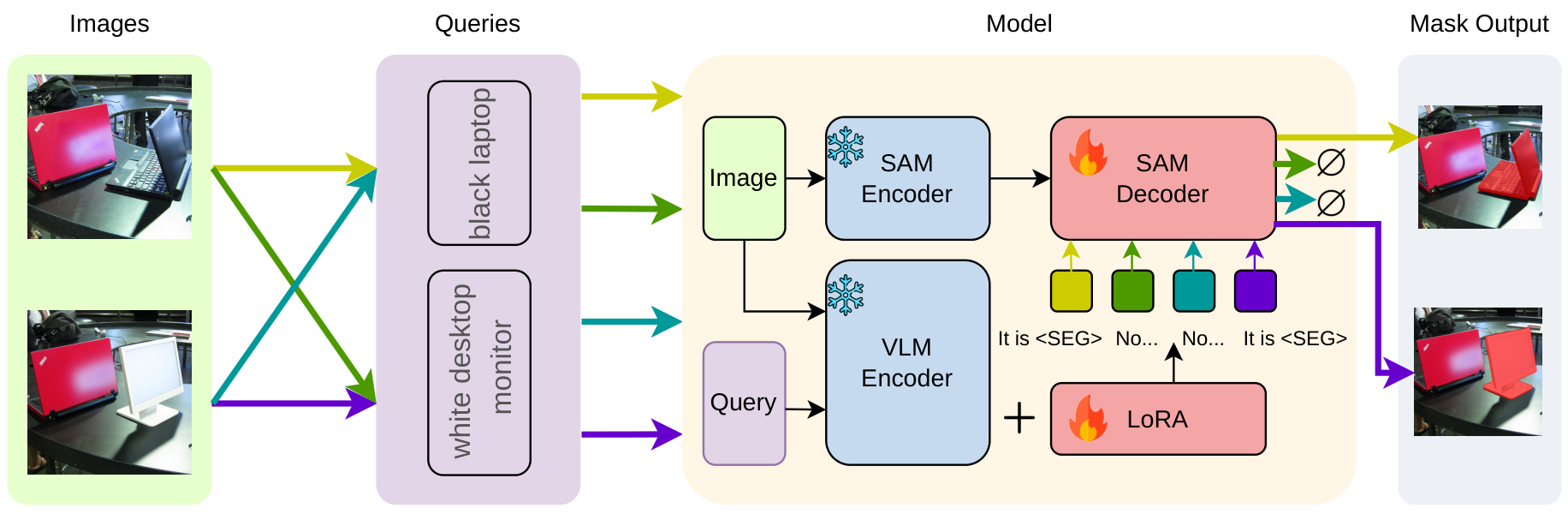

RobustSeg architecture and counterfactual fine-tuning pipeline — The SAM image encoder and VLM encoder remain frozen. LoRA adapters and the SAM decoder learn from positive segmentation pairs and negative pairs formed by changing either the query or the image.

HalluSegBench Dataset

HalluSegBench tests referring expressions and reasoning questions on paired factual and counterfactual images. Controlled object replacements preserve the scene context while changing whether the queried object is present, exposing masks generated from contextual expectations instead of visual evidence.

3,673: Paired examples
2,958: Images
7,346: Segmentation masks
816: Object categories

One pair tests four decisions

Changing the image or the expression independently tests whether the mask follows the evidence. Both matching pairs require segmentation. Each mismatched pair requires abstention.

Image	Query	Expected response
Factual	Original object	Segment
Factual	Replacement object	Abstain
Counterfactual	Original object	Abstain
Counterfactual	Replacement object	Segment

Paired scenes expose hallucination when a query names an object that was replaced. The examples illustrate baseline failures on the Counterfactual Segmentation Reasoning task.

The benchmark includes 2,812 referring-expression pairs and 861 reasoning pairs. The training split contains 1,934 pairs and the test split contains 1,739.

Explore the dataset Read the paper

Measuring hallucination and grounding

Factual IoU measures mask quality when the object is present. The new metrics test whether the model changes its prediction when the evidence changes and how severe an unsupported mask is.

Textual ΔIoU ↑

Change the query, keep the image

The gap between factual IoU and mask overlap under a query-only change measures whether the model distinguishes a present object from an absent one named in the same scene.

Visual ΔIoU ↑

Change the image, keep the query

The corresponding gap after replacing the queried object measures whether the mask responds to visual evidence rather than following the unchanged language prompt.

Confusion Mask Score ↓

Measure an unsupported mask

CMS penalizes overlap with the replacement object and leakage into other regions, normalized by the reference object area. Lower scores mean less hallucination. Abstaining on an absent object gives zero.

Quantitative Results

Counterfactual segmentation evaluation

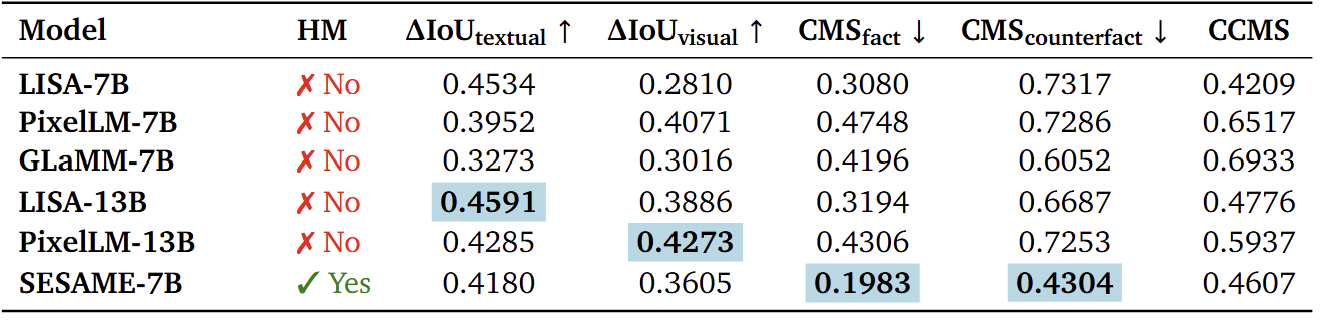

Comparison of Reasoning Segmentation Models on HalluSegBench Metrics, including textual and visual IoU drop for referral and reasoning tasks (ΔIoU Referral, ΔIoU Reasoning), factual and counterfactual Confusion Mask Score ( CMS).

Counterfactual segmentation evaluation
Model	HM	CMS Referral · Factual ↓	CMS Referral · Counterfactual ↓	CMS Reasoning · Factual ↓	CMS Reasoning · Counterfactual ↓	ΔIoU Referral · Textual ↑	ΔIoU Referral · Visual ↑	ΔIoU Reasoning · Textual ↑	ΔIoU Reasoning · Visual ↑
LISA-7B	No	0.3080	0.7317	0.4438	0.6960	0.4534	0.2810	0.2991	0.2418
PixelLM-7B	No	0.4748	0.7286	0.4284	0.5824	0.3952	0.4071	0.2792	0.2263
GLaMM-7B	No	0.4196	0.6052	0.3556	0.4022	0.3273	0.3016	0.2446	0.3164
LISA-13B	No	0.3194	0.6687	0.4979	0.6647	0.4591	0.3886	0.3430	0.3164
PixelLM-13B	No	0.4306	0.7253	0.4267	0.5424	0.4285	0.4273	0.3106	0.3079
Seg-Zero	Yes	0.4482	0.5598	0.6554	0.7671	0.4412	0.5312	0.2391	0.3042
VisionReasoner	Yes	0.8191	0.6908	0.7315	0.8633	0.3619	0.4822	0.2464	0.3075
SESAME-7B	Yes	0.1983	0.4304	0.2998	0.4873	0.4180	0.3605	0.3296	0.3000
RobustSeg (Ours)	Yes	0.1062	0.4049	0.1541	0.3988	0.6105	0.5278	0.4085	0.3184

Qualitative Results

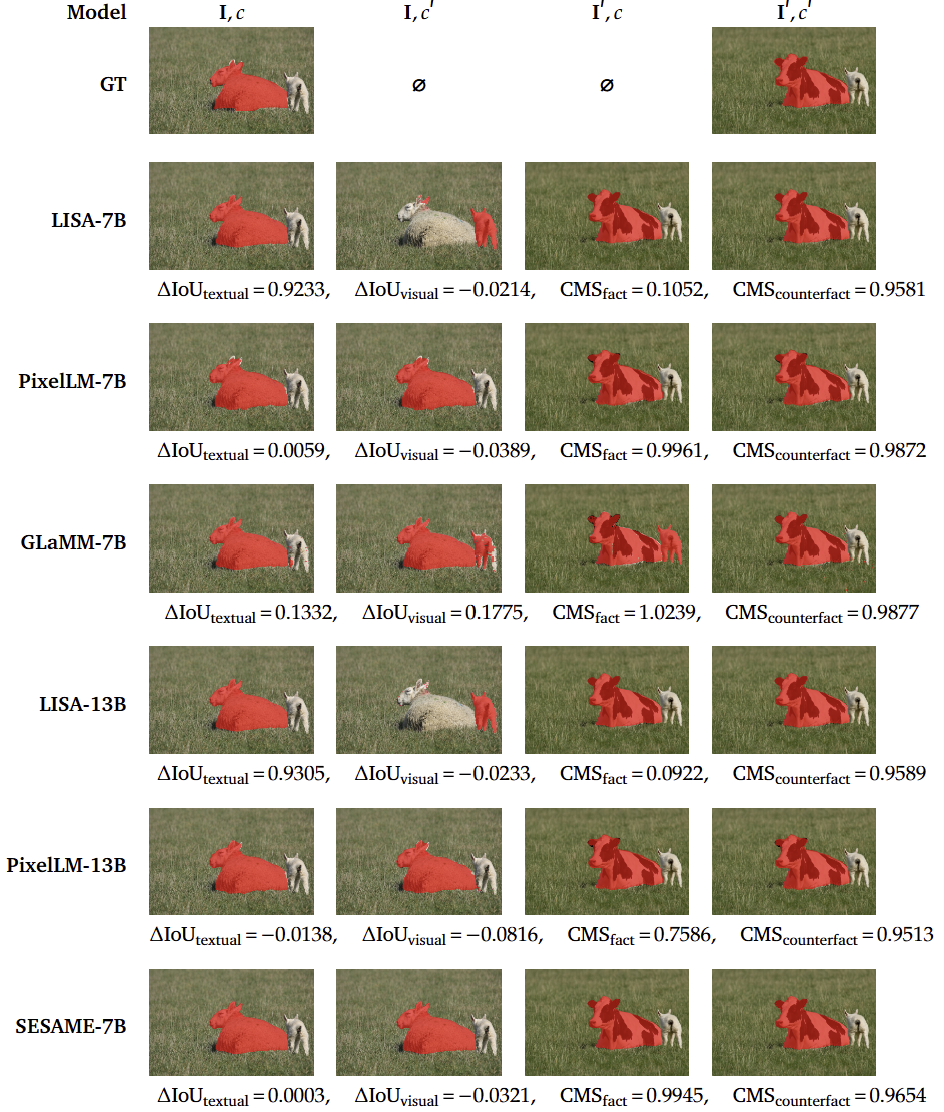

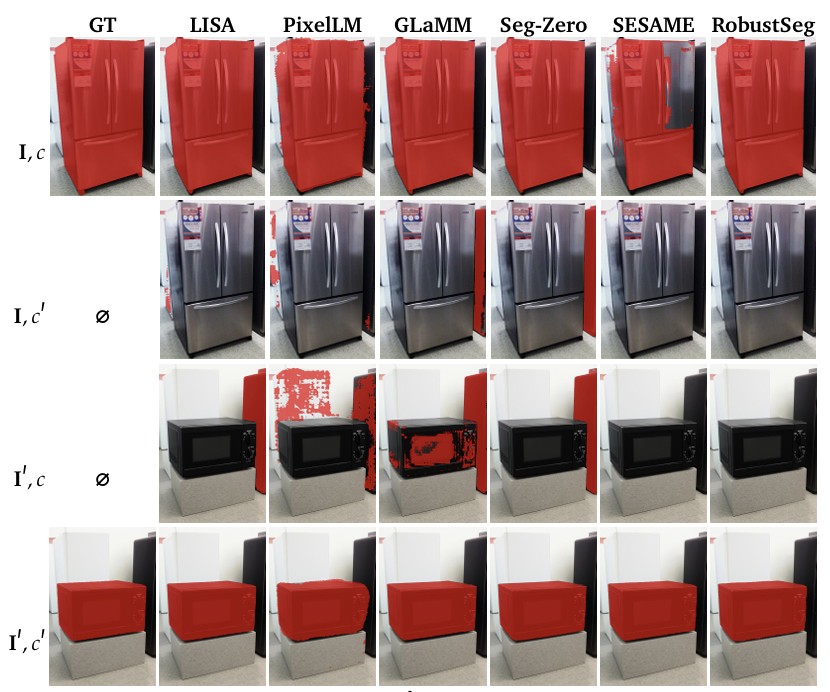

RobustSeg demonstrates hallucination mitigation capabilities compared with other reasoning-based segmentation models. We present qualitative examples that illustrate the predictions of benchmarked models across the four query-image combinations in both referral and reasoning tasks, along with the corresponding ground truth mask.

Here, c = “giant refrigerator” and c′ = “microwave oven”.

Here, c = “Where in the picture would be suitable for storing wine?” and c′ = “Where in the picture would be suitablefor resting one's feet?”.

BibTeX

@inproceedings{li2025hallusegbench,
  title={Counterfactual Segmentation Reasoning: Diagnosing and Mitigating Pixel-Grounding Hallucination},
  author={Li, Xinzhuo and Juvekar, Adheesh and Zhang, Jiaxun and Liu, Xingyou and Wahed, Muntasir and Nguyen, Kiet A. and Shen, Yifan and Yu, Tianjiao and Lourentzou, Ismini},
  booktitle={IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR Findings)},
  year={2026}
}
