Functional
Compare what objects can do
Which vehicle is more suitable for carrying larger cargo?
PRIMAMulti-Image Vision-Language Models for Reasoning Segmentation
TL;DR
We introduce PRIMA, a multi-image vision-language model that couples cross-image reasoning with pixel-grounded explanations. Its SQuARE module uses learnable relational queries to gather shared context across images, then injects that context into compact visual tokens before language fusion. PRIMA generates answers and segmentation masks together, trained and evaluated on M⁴Seg’s approximately 744K multi-image question-answer pairs with object and part masks.
Reason across images, ground the answer in pixels
PRIMA compares image sets and associates the objects and parts referenced in its answers with segmentation masks.
Abstract
Despite significant advancements in Large Vision-Language Models (LVLMs)' capabilities, existing pixel-grounding models operate in single-image settings, limiting their ability to perform detailed, fine-grained comparisons across multiple images. Conversely, current multi-image understanding models lack pixel-level grounding. Our work addresses this gap by introducing the task of multi-image pixel-grounded reasoning segmentation alongside PRIMA an LVLM that integrates pixel-level grounding with robust multi-image reasoning to produce contextually rich, pixel-grounded explanations. Central to PRIMA is SQuARE a vision module that injects cross-image relational context into compact query-based visual tokens before fusing them with the language backbone. To support training and evaluation, we curate M4Seg a new multi-image reasoning segmentation benchmark consisting of ~744K question-answer pairs that require fine-grained visual understanding across multiple images. PRIMA outperforms state-of-the-art baselines with 7.83% and 11.25% improvements in Recall and S-IoU, respectively. Ablation studies further demonstrate the effectiveness of the proposed SQuARE module in capturing cross-image relationships.
Contributions
- Novel Task. We propose the novel task of multi-image pixel-grounded reasoning segmentation which requires fine-grained comparison and contextual understanding across multiple images at pixel level and natural language reasoning.
- New Benchmark. We curate M4Seg a new challenging benchmark with ~744K multi-image QA pairs, annotated with multiple object and part segmentation masks to train and evaluate multi-image pixel-grounding models.
- New Multi-Image Pixel-Grounded LVLM. We propose PRIMA an LVLM designed to perform instruction-guided cross-image alignment of relevant visual features via a novel SQuARE module, enabling reasoning with contextually grounded segmentation masks across multiple images. Experiments demonstrate PRIMA's impressive performance compared to strong baselines across segmentation (+↑8.11% mIoU and +↑7.83% Recall) and text-based metrics (+↑6.45% Semantic Similarity and +↑11.25% S-IoU).
PRIMA Method
PRIMA compares multiple images while grounding the answer in object and part masks. SQuARE builds a shared relational representation across the image set, conditions compact visual tokens on that context and the instruction, and passes them to a language model that generates the explanation and segmentation tokens.

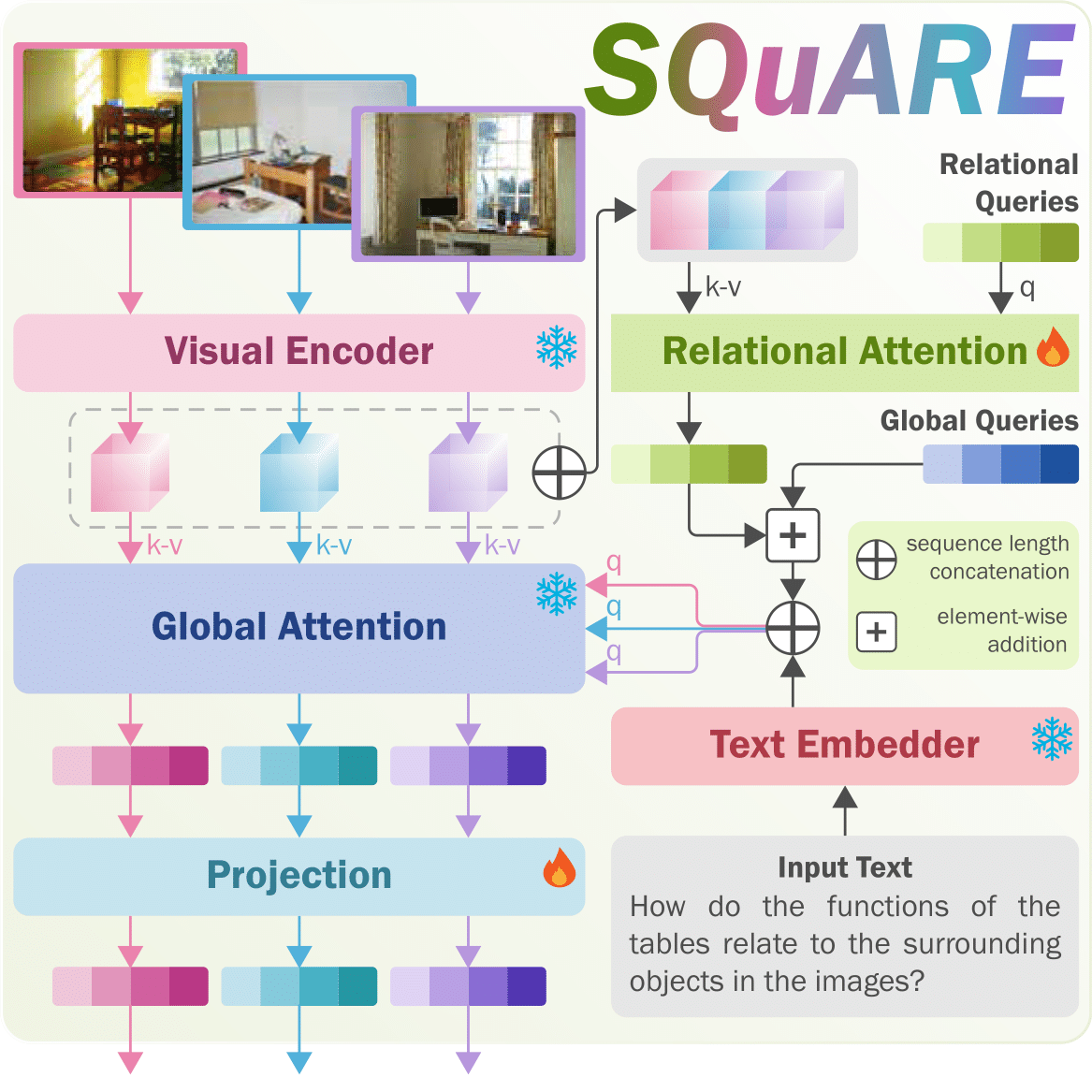

How SQuARE connects the images
The visual encoder first extracts features for each image. Learnable relational queries attend over the concatenated features, gathering relationships shared across the image set.
-
Gather relational context
Relational attention builds a shared representation from all input images.
-
Condition the global queries
The shared context is added to the text-conditioned query pathway before global attention extracts compact visual features.
-
Ground the explanation
The language model uses these enriched visual tokens to reason across images and identify the objects or parts that its segmentation tokens should mask.
M⁴Seg Dataset
M⁴Seg trains and evaluates multi-image pixel-grounded reasoning. Each example links an image set and a reasoning question to a natural-language answer with object and part segmentation annotations. Success requires comparing the images and identifying the pixels that support the answer.
- 743,864
- Question-answer pairs
- 207
- Object categories
- 181
- Part categories
- 3.49
- Masks per answer
What an example contains
-
Image set
Multiple views or scenes supply evidence that must be compared.
-
Reasoning question
The instruction asks about relations, counts, functions, or broader context across the images.
-
Grounded answer
The answer explains the comparison and links referenced objects and parts to segmentation masks.
Image pairs and triplets are sampled from ADE20K-Part-234, Pascal-Part, and PACO-LVIS. Questions compare similar scenes containing related objects. Filtering removes answers without grounding across images, references to absent objects or parts, and examples with more than 16 segmentation masks.
Four kinds of cross-image reasoning
Spatial
Compare positions and orientations
Which bird faces toward the left across the images?
Numerical
Compare quantities across scenes
Which image has fewer suitcases, and by how many?
Open-ended
Explain relationships in context
How do the tables’ functions relate to the surrounding objects?
Quantitative Results
Multi-image reasoning segmentation
Experimental Results on M4Seg. PRIMA significantly outperforms both general-purpose and pixel-grounding LVLM baselines. The general-purpose LVLMs struggle with this task, a limitation we attribute to their lack of task-specific training and cascading errors from using SAM on the text-based grounding information. While Gemini-2.5 Pro is the top performer in this category, its performance remains limited with 30.21% mIoU and 68.51% SS. The reasoning segmentation baselines perform better, as they leverage pixel grounding capabilities and are finetuned on M4Seg. GLaMM, for instance, outperforms the general-purpose LVLMs with 38.12% mIoU and 74.05% SS. Compared to all baselines, PRIMA sets a new benchmark, surpassing the next best baseline by 8.11% and 12.33% in terms of mIoU and I-SS, respectively. PRIMA also achieves a gain of up to 6.45% and 11.25% on the text metrics SS and SIoU.
| Model | mIoU ↑ | Recall ↑ | I-SS ↑ | I-SIoU ↑ | SS ↑ | SIoU ↑ | METEOR ↑ |
|---|---|---|---|---|---|---|---|
| Open-source LVLMs · post-hoc grounding | |||||||
| Qwen3-VL-8B | 21.52 | 12.03 | 20.76 | 16.05 | 68.44 | 53.57 | 20.47 |
| Nemotron-Nano-12B-v2 | 10.45 | 4.48 | 7.76 | 4.29 | 56.45 | 41.83 | 18.69 |
| Qwen3-VL-235B-A22B | 27.52 | 15.2 | 25.05 | 18.00 | 71.29 | 52.85 | 22.24 |
| InternVL3-78B | 19.65 | 10.4 | 19.07 | 15.35 | 65.02 | 49.23 | 20.03 |
| Pixtral-Large-124B | 28.54 | 14.20 | 26.90 | 20.72 | 70.88 | 54.29 | 21.44 |
| Closed-source LVLMs · post-hoc grounding | |||||||
| GPT-4o | 25.47 | 12.19 | 21.59 | 15.76 | 68.62 | 50.55 | 21.56 |
| Gemini 2.5 Pro | 30.21 | 15.25 | 24.69 | 15.51 | 68.51 | 45.21 | 18.89 |
| Pixel-grounding LVLMs | |||||||
| LISA | 37.21 | 21.36 | 39.34 | 33.31 | 73.32 | 63.86 | 25.47 |
| GLaMM | 38.12 | 22.78 | 41.91 | 35.76 | 74.05 | 64.59 | 25.33 |
| SQuARE ablations | |||||||
| Pooling instead of SQuARE | 44.34 | 26.59 | 45.79 | 37.11 | 72.37 | 60.05 | 26.24 |
| Projection instead of SQuARE | 45.08 | 28.12 | 50.41 | 45.91 | 78.14 | 71.33 | 25.88 |
| PRIMA (Ours) | 46.23 | 30.61 | 54.24 | 51.62 | 80.50 | 75.84 | 25.70 |
| Δ PRIMA − GLaMM | +8.11 | +7.83 | +12.33 | +15.86 | +6.45 | +11.25 | +0.37 |
Qualitative Results

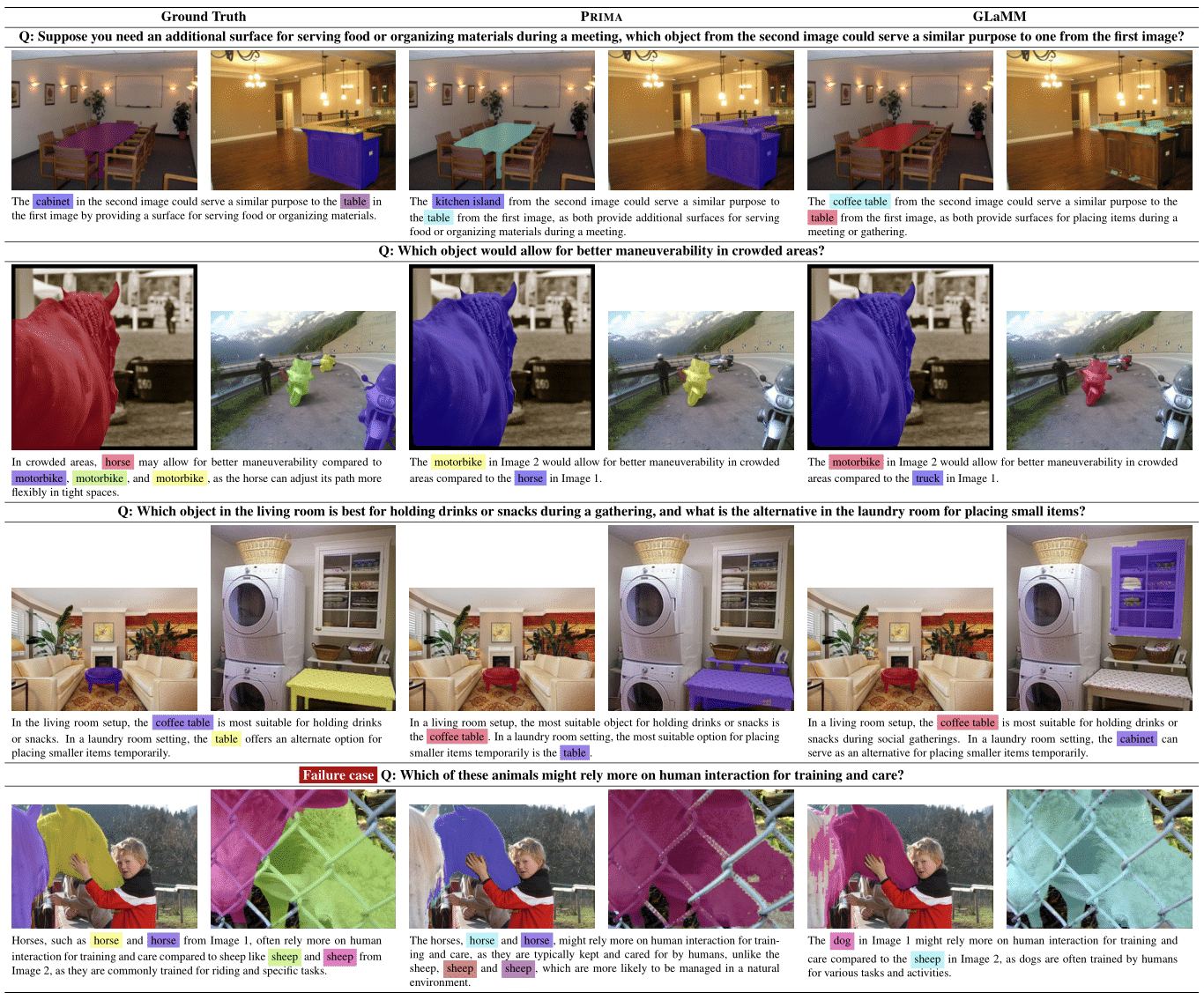

Qualitative Results. PRIMA exhibits strong qualitative performance
in both segmentation and reasoning. Each example shows the posted question, the textual
responses from each model, and the corresponding segmentation masks alongside the Ground
Truth reference. For clarity, we use consistent colors between the segmentation masks
and the highlighted text spans referring to each object or part. The results indicate that
PRIMA produces high-quality textual responses together with crisp, well-localized
segmentation masks, whereas GLaMM often yields noisy masks, attends to incorrect objects
(e.g., treating the cabinet as a surface for placing small items), and hallucinates
categories (e.g., misidentifying the horse as a truck or a dog). We also include a
failure case in which PRIMA predicts the correct number of objects but fails to
precisely distinguish individual instances, instead producing overlapping masks.
PRIMA in the Wild
PRIMA's performance on unseen images found on the web.
Notably, PRIMA generates superior segmentation masks compared to baselines,
as exemplified by the fine-grained details of the hammers in Example 3 and the dining chairs
in Example 4. Moreover, the baselines are more prone to hallucinations,
e.g., "pizza is shown with multiple slices" in the first example (GLaMM), "watch"
in the second example (both GLaMM and LISA). Beyond visual recognition, these examples
underscore PRIMA's capability to retain compositional reasoning capabilities when
transferring to diverse and noisy real-world images.
BibTeX
@article{wahed2024prima,
title={PRIMA: Multi-Image Vision-Language Models for Reasoning Segmentation},
author={Wahed, Muntasir and Nguyen, Kiet A and Juvekar, Adheesh Sunil and Li, Xinzhuo and Zhou, Xiaona and Shah, Vedant and Yu, Tianjiao and Yanardag, Pinar and Lourentzou, Ismini},
journal={arXiv preprint arXiv:2412.15209},
year={2024}
}
